FVO-1100TR

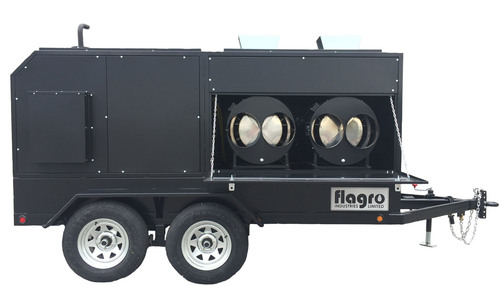

Self Contained Heater Trailer
Self Contained Heater Trailer
800,000 BTU Indirect Fired Heater Trailer-Oil With Air Recirculation capabilities
- 2 x FVO-400RC Flagro Indirect Fired Heaters with Air Recirculating Inlets
- 16 g 304 stainless steel heat exchangers
- 4 x 12" or 2 x 16" heater duct outlets & 2 x 16" inlets
- 2 x 3,500 lbs dual axle, 4 x 15" rims & tires
- Solid steel welded channel frame and floor
- Electric emergency brakes included and lights
- Safety chains, 2 5/16" trailer ball or 3" pintle hitch included
- Kubota or Yanmar Generator
- TC Approved 300 US Gal. Fuel Tank
SUPPORT DOCUMENTS
FVO-1100TR Operating Instructions ManualPart # FVO-1100TR
| Type | Indirect Fired Heaters |
| Heat Capacity | 2 x 390,000 BTU/H |
| LP/NG Hose Assembly | |
| Fuel Capacity / Run Time | TC APPROVED 300 US GAL/ 44 HRS |
| Fuel Type | Oil |
| Generator | Stamford Newage Generator |
| Engine | Yanmar or Kubota |
| Power Requirements | N/A |
| Fan Motor / Air Circulation | 1 H.P. / 4000 CFM (per heater) |
| Fan Control | N/A |
| Heat Exchanger | 16 Ga 304 Stainless Steel |
| Ignition | Direct Spark |
| Nozzle Size / Pump Pressure | 2.00 x 60B/ 170PSI |
| Standard Air Outlet | 4 x 12" Dia |
| Optional Air Outlet | 2 x 16" Dia |
| Air Inlet | 2 x 16" Dia |
| Wheels | Dual Axle - 4 x 15" Gal. Rims with Radial Tires |
| Wheels Kit | |
| Dimensions / Weight | 16-ft x 7.4 -ft x 7-ft / 4300 LBS. (empty) |
| Approvals | CSA & ESA |
| Standard Outlet Ducting | FV-HD12 (12" x 12') |
| Optional Outlet Ducting | FV-HDG16 (16" x 25') |
| Return/Intake Ducting | FV-HDV16 (16" x 25') |
| Thermostat Control | |
| Remote Thermostat | N/A |
| Option | N/A |
| Vented Regulator | |
| Ventless Regulator |
