ACV-950L


AceCube Versatile 950 Litre Fuel Storage Tank

ACL-950L Full Image

The AceCube Versatile ACV-950L is designed for the secure transport and storage of industrial lubricants and hazardous liquids worldwide.





ENHANCED DESIGN FEATURES

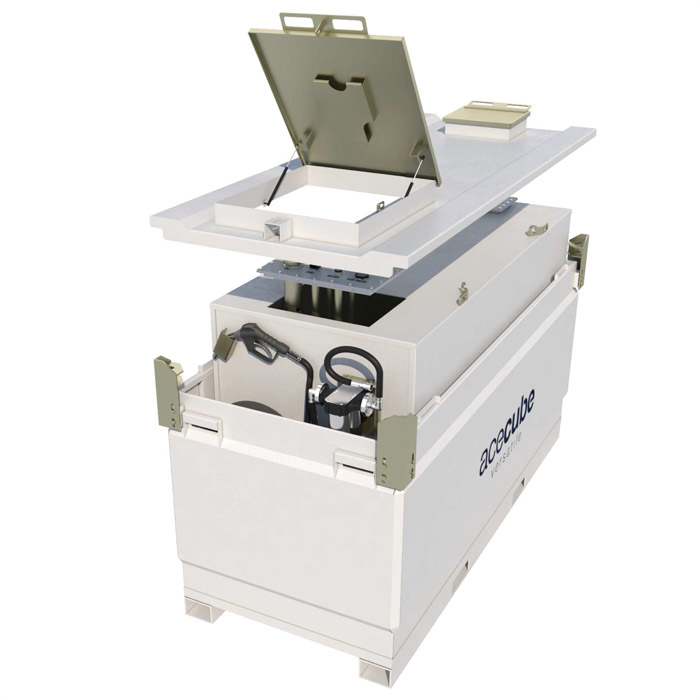

The AceCube Versatile Tank comes equipped with two galvanized hatch lids and galvanized stacking corners. The primary hatch lid opens up to a component ports plate. The component ports plate doubles up to act as a manhole cover. This doubling up of design features has allowed room on the top lid of the AceCube tank for a secondary hatch plate. The AceCube is a 110% fully bunded design.



DISPENSING & ACCESSIBILITY

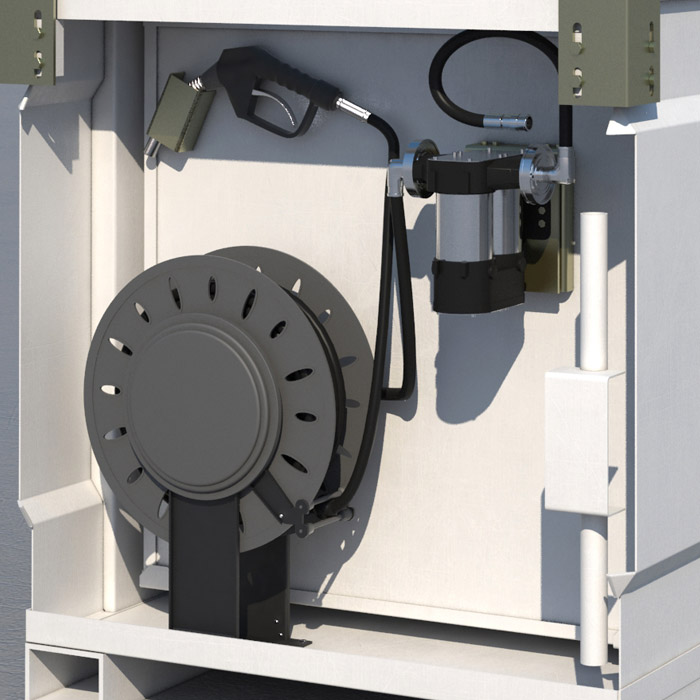

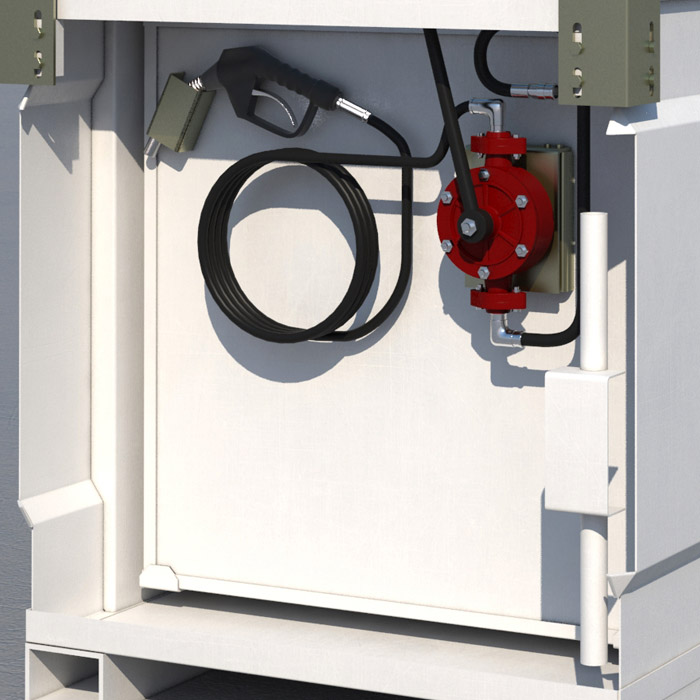

The AceCube Versatile Tank has a unique extra large equipment chamber with a an innovative universal bracket system that can carry various pump dispensing kits, electric pumps, rotary hand pumps and retractable hose reels.




MAINTENANCE & ENVIRONMENT

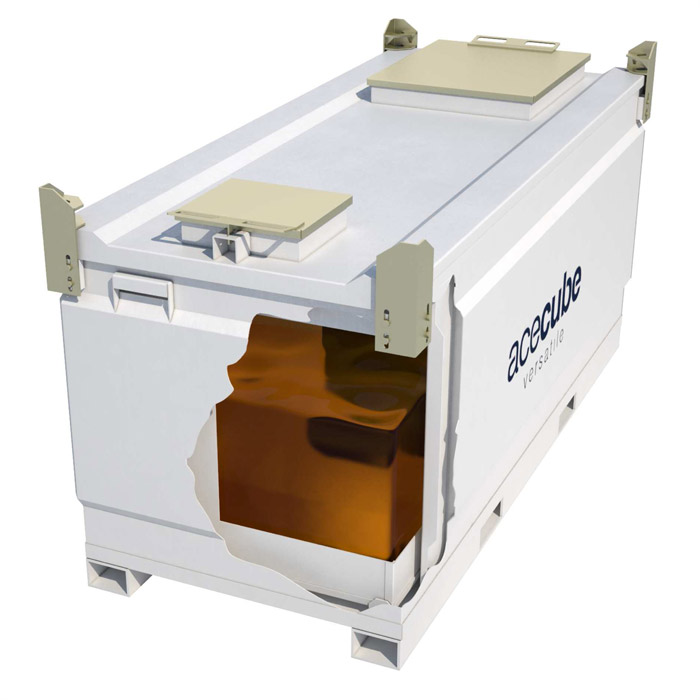

The unique 3 tier component design allows the inner tank to be completely removed and disconnected, meaning it is unencumbered during cleaning and inspection. This design also allows for an easy refurbishment and enhances ROI.



TRANSPORTABLE & PORTABLE

The AceCube Versatile IBC Bunded Fuel Storage Tank comes with UN31A/Y certification. This allows for safe transportation on all major roadways when full of fuel under ADR regulations.



STACKING & RACKING

AceCube tank designs are suited to worldwide transport. They are “stackable and rackable” into 40ft shipping containers and are also stackable 2 high when empty and 3 high when full.



CONVENIENT FITTINGS PLATE

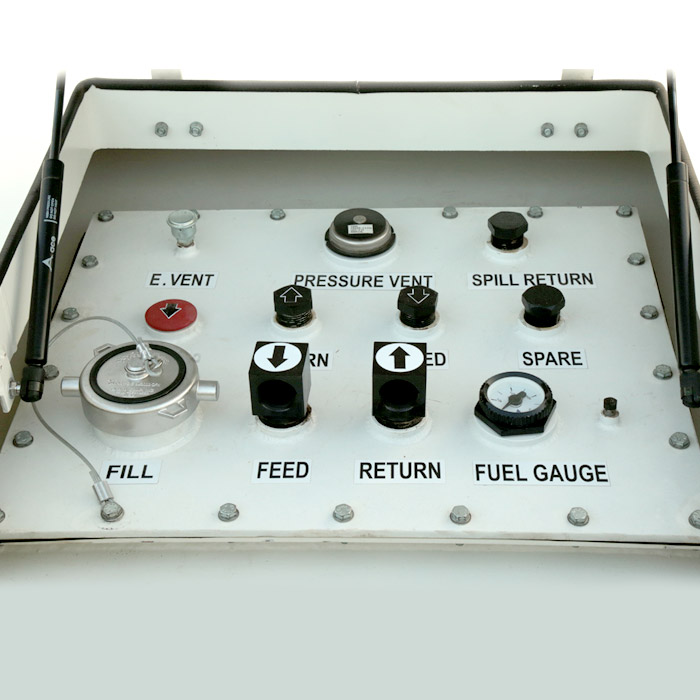

The AceCube features a convenient fittings plate with 3 letterbox openings making it easy to connect multiple generators and industrial machines simultaneously. The system is secure and lockable while in use.



APPLICATIONS

Prime Fueling

The AceCube Range can be used for an array of direct fuelling applications, including providing bulk fuel supply to on-site water pumps or critical power generators.

Emergency

The range is widely used as a backup fuel source for emergency situations. Its unique and versatile design allows it to be transported or lifted while full of fuel and the “stackable and rackable” transport composition makes it ideal for quick deployment.

Standby Fuel

The AceCube Versatile Tank Range can be used as a secondary or standby bulk fuel source, for refuelling of machinery and equipment on site in quarries and on farms.



SECTORS

  • Equipment rental
  • Diesel generator Power
  • Municipalities
  • Construction
  • Fuel Distribution



SPECIFICATIONS

  METRIC IMPERIAL US
CAPACITY    950 litres 208.97 gal 250.96 gal
LENGTH    1552 mm 1552 mm 5.09 ft
WIDTH    1015 mm 1015 mm 3.33 ft
HEIGHT    1075 mm 1075 mm 3.53 ft
OUTER TANK THICKNESS    3 mm 3 mm 0.01 ft
INNER TANK THICKNESS    3 mm 3 mm 0.01 ft
WEIGHT, TARE    640 kg 640 kg 1410.96 lbs
WEIGHT, LADEN    1495 kg 1495 kg 3295.91 lbs
SAFE FUEL FILL LEVEL    903 litres 198.63 gal 238.55 gal



APPROVALS & CERTIFICATIONS

  • (IBC) Intermediate Bulk Containment
  • TSSA B1390 ON - 2006 (optional)
  • UN 31 A/Y
  • DOT USA
  • DOT Canada
  • Lifting When Full Certified
  • Vibration Tested
  • UL 142
  • ULC S601-14
  • Patent No: GB2502198
  • Trade Mark Europe, UK, America



DOCUMENTS

Operator's Manual Operator's Manual

 Data Sheet



Part # ACV-950L
