Indirect Fired Heater - Bulk Tank


Indirect Fired Heater - Bulk Tank

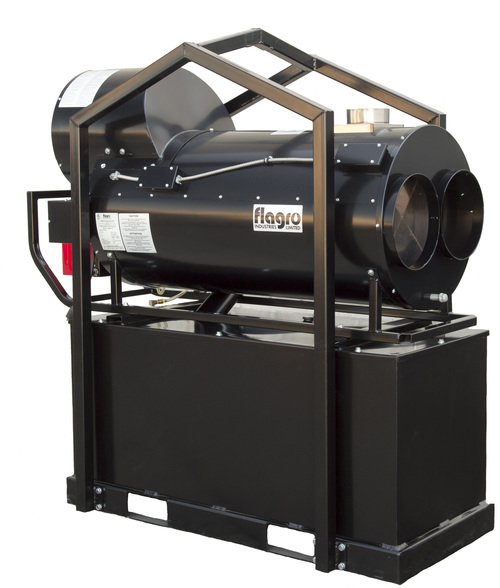

390,000 BTU Indirect Fired Oil Heater - Recirculating Hood & 118 US GAL. Tank

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control and Volt meter
  • Tiger-loop system that eliminates fuel system air locks & 118 US Gal. fuel tank



FVO-400RCBT Operating Instructions Manual

FVO-400RCBT Parts List

F-10 Oil Fired Burner Parts Diagram

FV-400RC Wiring Diagram


Part # FVO-400RCBT

Type Indirect Fired Heaters
Heat Capacity Up to 390,000 BTU/H
LP/NG Hose Assembly
Fuel Capacity / Run Time 118 US GAL / 44 HRS
Fuel Type Oil
Power Requirements 115 V/15 A (10.5 A Draw)
Fan Motor / Air Circulation 1 H.P. / 4000 CFM
Fan Control N/A
Heat Exchanger 16 Ga 304 Stainless Steel
Ignition Direct Spark
Nozzle Size / Pump Pressure 2.00 x 60B/ 170 PSI
Standard Air Outlet 2 x 12" Dia
Optional Air Outlet 1 x 16" Dia
Air Inlet 1 x 16" Dia
Wheels Skid Base
Wheels Kit
Dimensions / Weight 71" x 33" x 73" / 850 LBS.
Approvals cETLus
Standard Outlet Ducting FV-HD12 (12" x 12')
Optional Outlet Ducting FV-HD12X25 (12" x 25')
Return/Intake Ducting FV-HDV16 (16" x 25')
Thermostat Control
Remote Thermostat FV-THB
Option N/A
Vented Regulator
Ventless Regulator
