Indirect Fired Oil Heater


Indirect Fired Oil Heater

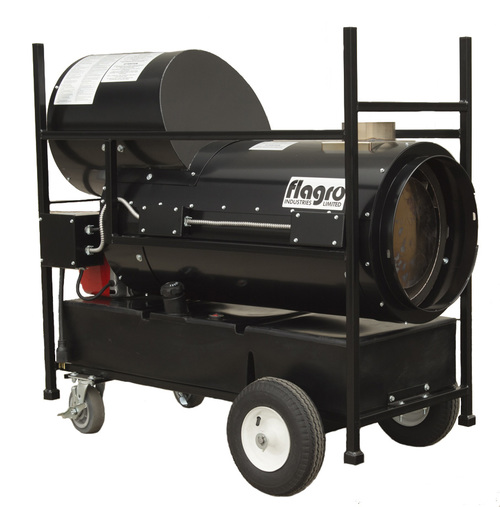

185,000 BTU Indirect Fired Oil Heater - Recirculating Hood

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control verifies proper power supply to the heater
  • Stackable frame allow for convenient transportation & storage
  • Built-in fuel tank (23US GAL)



FVO-200RC Operating Manual

FVO-200RC Parts List

PDF DownloadF-5 Oil Fired Burner Parts Diagram

PDF DownloadFV-200RC Series Wiring Schematic (2018)

Part # FVO-200RC

Type Indirect Fired Heaters
Heat Capacity 185,000 BTU/H
LP/NG Hose Assembly
Fuel Capacity / Run Time 23 US GAL/ 17 HR
Fuel Type Oil
Power Requirements 115 V/15 A (6 A Draw)
Fan Motor / Air Circulation 1/2 H.P. / 2,600 CFM
Fan Control N/A
Heat Exchanger 16 Ga 304 Stainless Steel
Ignition Direct Spark
Nozzle Size / Pump Pressure 1.10 x 70A/ 180PSI
Standard Air Outlet 1 x 12" Dia
Optional Air Outlet 1 x 16" Dia
Air Inlet 1 x 12" Dia
Wheels 2 x 12" Dia. Flat Free/ 2 x Casters
Wheels Kit
Dimensions / Weight 51.5" x 27" x 48" / 350 LBS.
Approvals cETLus
Standard Outlet Ducting FV-HD12 (12" x 12')
Optional Outlet Ducting FV-HDG16 (16" x 25')
Return/Intake Ducting FV-HD12 (12" x 12')
Thermostat Control
Remote Thermostat FV-THB
Option FVO-TLS Tigerloop System
Vented Regulator
Ventless Regulator
