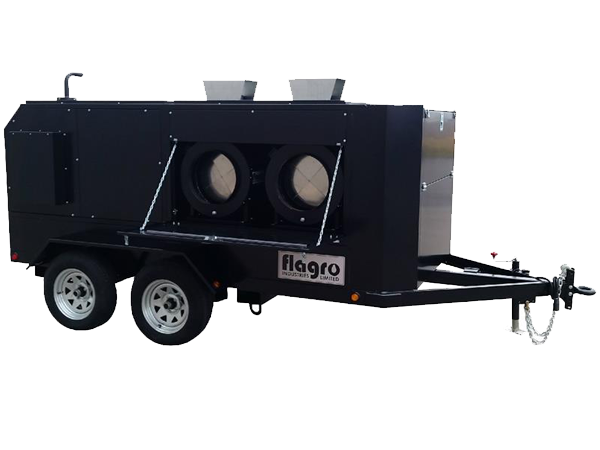

FVO-1000 Trailer


FVO-1000 Trailer Self-Contained Heater Trailers

Flagro Self-contained Heater Trailers

Portable heat and power anywhere you need it

  • 2 x FVO-400 Flagro Indirect Fired Heaters
  • 16 g 304 stainless steel heat exchangers
  • 4 x 12" heater duct outlets accepting standard industry ducting
  • 2 x 3,500 lbs dual axle, 4 x 15" rims & tires
  • Solid steel welded channel frame and floor
  • Electric emergency brakes included and lights
  • Safety chains, 2 5/16" trailer ball or 3" pintle hitch included
  • TC Approved 300 US Gal fuel tank



SUPPORT DOCUMENTS

FVO-1000TR Operating Instructions Manual

FVO-1000TR Parts List

F-10 Oil Fired Burner Diagram



Part # FVO-1000TR

Type Indirect Fired Heaters
Heat Capacity 2 x 390,000 BTU/H
Fuel Capacity / Run Time TC APPROVED 300 US GAL/ 44 HRS
Fuel Type Oil
Generator Stamford Newage Generator
Engine Yanmar or Kubota
Power Requirements N/A
Fan Motor / Air Circulation 1.5 H.P. / 3,000 CFM (per heater)
Fan Control N/A
Heat Exchanger 16 Ga 304 Stainless Steel
Ignition Direct Spark
Nozzle Size / Pump Pressure 2.00 x 60B/ 170 PSI
Standard Air Outlet 2 x 12" Dia
Optional Air Outlet 1 x 16" Dia
Air Inlet N/A
Wheels Dual Axle - 4 x 15" Gal. Rims with Radial Tires
Dimensions / Weight 16-ft x 7.4 -ft x 7-ft / 4300 LBS. (empty)
Approvals CSA & ESA
Standard Outlet Ducting FV-HD12 (12" x 12')
Optional Outlet Ducting FV-HD12X25 (12" x 25')
Return/Intake Ducting N/A
Remote Thermostat N/A
Option N/A
