Category: Heaters

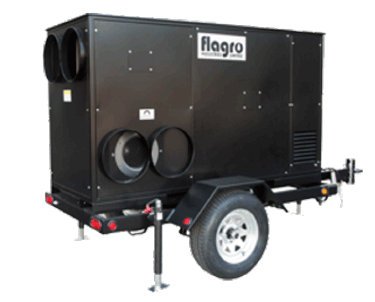

FVNP-750TR
Indirect Fired Heater

FV-750TR Indirect Fired Heaters in Self-contained Trailers
Two models to choose from:
![]() FVO-750TRFC |
![]() FVNP-750TR |
Both models feature a primer and powder-coated finish, are DOT approved and include all signal and marker lights.
The FVNP trailer has a single axle with 15" rims and radials.
The FVO trailer has a dual axle with 15" rims and radials and includes second axle brakes. On-board 180 US gallon tank with 110% containment is included. FVO has a 30-hour run time at constant fire with no thermostat, a Tiger Loop fuel draw and priming systems standard, a 4" C-Channel framed to protect the fuel tank and a 4" spout with anti-splash insert.
FVO and FVNP heaters feature a 130º F temperature rise at 7,000 cfm, created by reverse inclined blower. They are ductable up to 200 ft. and equipped with VFD controls, allowing for a soft start, which regulates fan speed, power and power draw on start up or shut down. 1 phase and 3 phase, 208-230V power supply connections are standard and both models are equipped with dual 16" inlets and outlets.
The proven Flagro heat exchanger design includes fully welded, 16 g 304 stainless steel.
Printable Spec Sheet
Model | FVO-750 TRFC | FVNP-750TR |
---|---|---|
OIl | Dual Fuel - LP/NG | |
Heat Capacity | 750,000 btuh | 750,000 btuh |
Temperature Rise | 130º F | 130º F |
Heat Exchanger | 16 gauge, 304 Stainless Steel | 16 gauge, 304 Stainless Steel |
Fan Motor | 7.5 hp | 7.5 hp |
CFM | 7,000 ctm | 7,000 ctm |
Fan Control | VFD Standard | VFD Standard |
Ignition | Direct Spark Ignition | Direct Spark Ignition |
Nozzle Size / Gas Pressure | 4.5x60W @ 160 psi | Propane - 1.5" W.C. Natural Gas - 2.2" W.C. |
Air Outlet | Two 16" diameter | Two 16" diameter |
Air Inlet | Two 16" diameter | Two 16" diameter |
Power Requirement | 1 ph/208-230v or 3ph/208-230v |
1 ph/208-230v or 3ph/208-230v |
Amperage Draw | 18 amp @ 1ph | 18 amp @ 1ph |
14 amp @ 3ph | 14 amp @ 3ph | |
Approvals | cETLus | cETLus |
Weight | 2,980 lb | 1,900 lb |
Part # FVNP-750TR
Type | Indirect Fired Heaters |
Heat Capacity | |
LP/NG Hose Assembly | |
Fuel Capacity / Run Time | |
Fuel Type | Oil |
Generator | |
Engine | |
Power Requirements | 1 Phase 208-230V (18 AMP Draw) |
Fan Motor / Air Circulation | |
Fan Control | N/A |
Heat Exchanger | 16 Ga 304 Stainless Steel |
Ignition | Direct Spark |
Nozzle Size / Pump Pressure | |
Standard Air Outlet | 1 x 12" Dia |
Optional Air Outlet | 1 x 12" Dia |
Air Inlet | 1 x 12" Dia |
Wheels | |
Wheels Kit | |
Dimensions / Weight | |
Approvals | cETLus |
Standard Outlet Ducting | FV-HD12 (12" x 12') |
Optional Outlet Ducting | FV-HD12 (12" x 12') |
Return/Intake Ducting | FV-HD12 (12" x 12') |
Thermostat Control | |
Remote Thermostat | FV-THB |
Option | FVO-TLS Tigerloop System |
Vented Regulator | |
Ventless Regulator |
