Category: Heaters

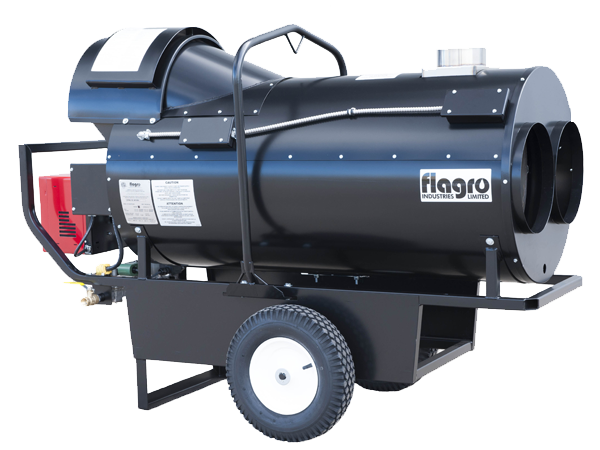

FVNP-400
Indirect Fired Dual Fuel Heater
Indirect Fired Heater
Even more heat when and where you need it
The 400 series is just as reliable as the 200, with even greater heating capacity at up to 390,000 btuh. The 42 gallon tank on the FV0-400 can run for up to 14 hours, burning just 2.75 gallons per hour. FVO-400 weighs in at 450 lb and has two 16" pneumatic wheels. The FVN-400 (natural gas) and the FVP-400 (propane) weigh 365 lb and require external fuel tanks. All three models measure 70" long x 29" wide x 52" high. They come with two 12" air outlets and an optional third 16" outlet.
-
Indirect fired heat exchanger allows external exhaust of combustion products
-
Standard steel lifting harness
-
Heavy-duty pneumatic tubed tires
-
Slim design for easy site mobility and transportation
-
Dual Fuel Heater - change from gas to gas with a ball valve
SUPPORT DOCUMENTS
FVNP-400 Operating Instructions Manual
G400 LP/NG Burner Parts Diagram
Part # FVNP-400
| Type | Accessories |
| Heat Capacity | |
| LP/NG Hose Assembly | |
| Fuel Capacity / Run Time | |
| Fuel Type | Diesel |
| Generator | |
| Engine | |
| Power Requirements | 1 Phase 208-230V (18 AMP Draw) |
| Fan Motor / Air Circulation | |
| Fan Control | N/A |
| Heat Exchanger | 16 Ga 304 Stainless Steel |
| Ignition | Direct Spark |
| Nozzle Size / Pump Pressure | |
| Standard Air Outlet | 1 x 12" Dia |
| Optional Air Outlet | 1 x 12" Dia |
| Air Inlet | 1 x 12" Dia |
| Wheels | |
| Wheels Kit | |
| Dimensions / Weight | |
| Approvals | cETLus |
| Standard Outlet Ducting | FV-HD12 (12" x 12') |
| Optional Outlet Ducting | FV-HD12 (12" x 12') |
| Return/Intake Ducting | FV-HD12 (12" x 12') |
| Thermostat Control | |
| Remote Thermostat | FV-THB |
| Option | FVO-TLS Tigerloop System |
| Vented Regulator | |
| Ventless Regulator |
