Category: Heaters

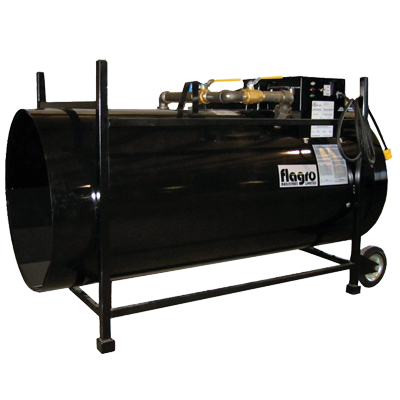

F-1500T
Dual Fuel Construction Heaters
Dual Fuel Construction Heaters
- Engineered for easy operation and minimal servicing
- Electronic direct spark ignition control
- Equipped with 100% flame safeguard system
- Just turn the fuel selector valve to change the fuel supply
- Designed for commercial applications
- Environmentally friendly with minimal combustion impurities
- Temporary heat for construction and maintenance.
Three models to choose from
 |
 |

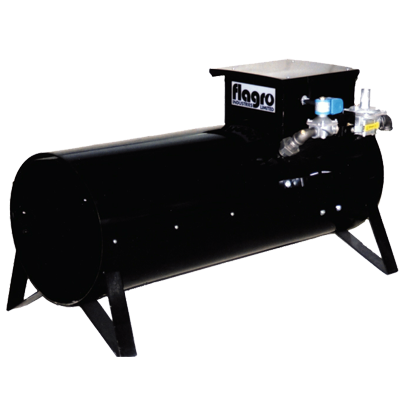

| F-400T | F-1500T |
| Model | F-400T | F-1000T | F-1500T | |
|---|---|---|---|---|
| Fuel | Propane or Natural Gas | Propane or Natural Gas | Propane or Natural Gas | |
| BTU/hour | 400,000 btuh | 1,000,000 btuh | 1,500,000 btuh | |
| Low fire BTU/hour | N/A | N/A | 650,000 btuh | |
| Inlet Pressure | Propane | 11" W.C. | 11" W.C. max | 11" W.C. max |
| Natural Gas | 3.5" W.C. | 7" W.C. min | 9" W.C. min | |
| Power requirement | 115 V / 60 Hz / 1 PH / 15 Amp | 115 V / 60 Hz / 1 PH / 20 Amp | 115 V / 60 Hz / 1 PH / 20 Amp | |
| Fan Motor | 1/3 HP | 1 HP | 1 HP | |
| Air Circulation | 2,000 cfm | 7,000 cfm | 7,000 cfm | |
| Ignition | Direct Spark Control | Direct Spark Control | Direct Spark Control | |
| Thermostat Control | Yes | Yes | Yes | |
| L x W x H | 48" x 22" x 24" | 61" x 29" x 38" | 61" x 29" x 38" | |
| Air Outlet | 15" diameter | 26" diameter | 26" diameter | |
| Weight | 90 lb | 314 lb | 314 lb | |
Required Equipment for Heater Installations
| Recommended for Model # | Second Stage Regulator* | Hose Assembly** |
|---|---|---|
| F-400T | B42R0.75 (3/4" NPT) Dual | Optional 50' x 3/4" |
| F-1000T | B42R1.25 (1-1/4" NPT)Dual | - |
| F-1500T | B31R1.25 (1-1/4" NPT) Dual | - |
| Note: *Regulator sizing assumes job site inlet pressure of 1-10 psi ** Custom hose assemblies are available upon request |
||
Part # F-1500T
| Type | Dual Fuel Construction Heaters |
| Fuel Type | Dual |
| Power Requirements | 1 Phase 208-230V (18 AMP Draw) |
| Fan Control | N/A |
| Heat Exchanger | 16 Ga 304 Stainless Steel |
| Ignition | Direct Spark |
| Standard Air Outlet | 1 x 12" Dia |
| Optional Air Outlet | 1 x 12" Dia |
| Air Inlet | 1 x 12" Dia |
| Approvals | cETLus |
| Standard Outlet Ducting | FV-HD12 (12" x 12') |
| Optional Outlet Ducting | FV-HD12 (12" x 12') |
| Return/Intake Ducting | FV-HD12 (12" x 12') |
| Remote Thermostat | FV-THB |
| Option | FVO-TLS Tigerloop System |
